"Selecting the most important predictor variables that explains the major part of variance of the response variable can be key to identify and build high performing models. These techniques are powerful tools that can help reveal the large sediments of gold in your data.
Data Preparation
For illustrating the various methods, we will use the ‘Ozone’ data from ‘mlbench’ package, except for Information value method which is applicable for binary categorical response variables.
# Data Preparation
library(mlbench)
data(Ozone, package="mlbench")
inputData <- Ozone
names(inputData) <- c("Month", "Day_of_month", "Day_of_week", "ozone_reading", "pressure_height", "Wind_speed", "Humidity", "Temperature_Sandburg", "Temperature_ElMonte", "Inversion_base_height", "Pressure_gradient", "Inversion_temperature", "Visibility") # assign names
Impute missing values using k-Nearest Neighbours
<em>### Impute Missing values
library(DMwR)
inputData <- knnImputation(inputData)
Segregate continuous and categorical variables
### Segregate all continuous and categorical variables
# Place all continuous vars in inputData_cont
inputData_cont <- inputData[, c("pressure_height", "Wind_speed", "Humidity", "Temperature_Sandburg", "Temperature_ElMonte", "Inversion_base_height", "Pressure_gradient", "Inversion_temperature", "Visibility")]
# Place all categorical variables in inputData_cat
inputData_cat <- inputData[, c("Month", "Day_of_month", "Day_of_week")]
# create the response data frame
inputData_response <- data.frame(ozone_reading=inputData[, "ozone_reading"]) # response variable as a dataframe
response_name <- "ozone_reading" # name of response variable
response <- inputData[, response_name] # response variable as a vector
1. Random Forest Method
Random forest can be very effective to find a set of predictors that best explains the variance in the response variable.
library(party)
cf1 <- cforest(ozone_reading ~ . , data= inputData, control=cforest_unbiased(mtry=2,ntree=50)) # fit the random forest
varimp(cf1) # get variable importance, based on mean decrease in accuracy
varimp(cf1, conditional=TRUE) # conditional=True, adjusts for correlations between predictors
varimpAUC(cf1) # more robust towards class imbalance.
## Based on mean drop in accuracy # Month # 3.07240463 # # Day_of_month # 0.05763824 # # Day_of_week # 0.23705288 # # pressure_height # 7.07962903 # # Wind_speed # 0.18803550 # # Humidity # 3.48513051 # # Temperature_Sandburg # 11.15242224 # # Temperature_ElMonte # 13.76939819 # # Inversion_base_height # 3.97817073 # # Pressure_gradient # 2.34617215 # # Inversion_temperature # 7.88156535 # # Visibility # 2.43741341
2. Relative Importance
Using calc.relimp {relaimpo}, the relative importance of variables fed into a lm model can be determined as a relative percentage.
library(relaimpo)
lmMod <- lm(ozone_reading ~ . , data = inputData) # fit lm() model
relImportance <- calc.relimp(lmMod, type = "lmg", rela = TRUE) # calculate relative importance scaled to 100
sort(relImportance$lmg, decreasing=TRUE) # relative importance
## Sums up to 1 # Temperature_ElMonte # 0.184722438 # Temperature_Sandburg # 0.164540381 # Month # 0.163371978 # Inversion_temperature # 0.137890248 # pressure_height # 0.087594494 # Inversion_base_height # 0.083696664 # Humidity # 0.068573808 # Visibility # 0.039202230 # Day_of_month # 0.031248599 # Pressure_gradient # 0.026557629 # Day_of_week # 0.008371262 # Wind_speed # 0.004230269
4. MARS (earth package)
The earth package implements variable importance based on Generalized cross validation (GCV), number of subset models the variable occurs (nsubsets) and residual sum of squares (RSS).
library(earth)
marsModel <- earth(ozone_reading ~ ., data=inputData) # build model
ev <- evimp (marsModel) # estimate variable importance

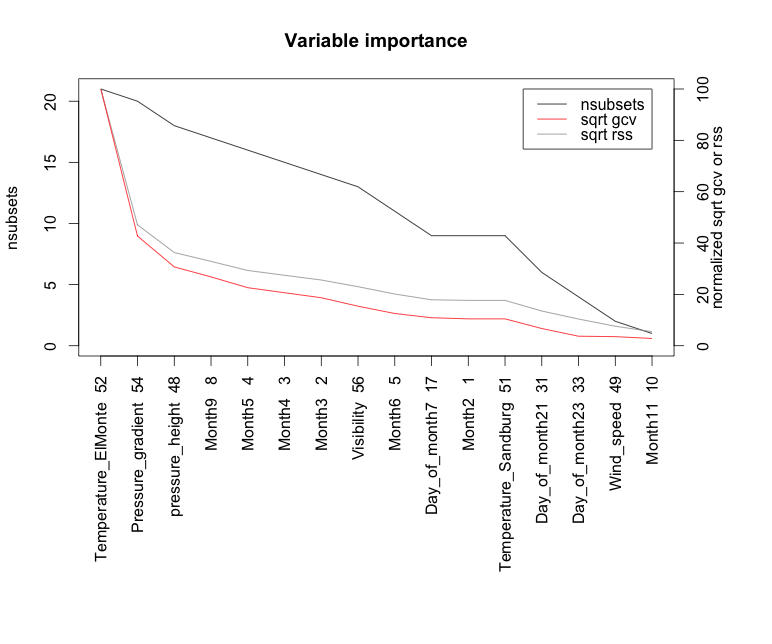

plot (ev)
# ev # nsubsets gcv rss # Temperature_ElMonte 21 100.0 100.0 # Pressure_gradient 20 42.7 47.1 # pressure_height 18 30.7 36.3 # Month9 17 26.8 32.9 # Month5 16 22.6 29.3 # Month4 15 20.6 27.4 # Month3 14 18.7 25.6 # Visibility 13 15.4 23.0 # Month6 11 12.6 20.1 # Day_of_month7 9 10.9 17.9 # Month2 9 10.5 17.7 # Temperature_Sandburg 9 10.5 17.7 # Day_of_month21 6 6.7 13.5 # Day_of_month23 4 3.7 10.4 # Wind_speed 2 3.5 7.6 # Month11 1 2.8 5.5
5. Step-wise Regression
If you have large number of predictors (> 15), split the inputData in chunks of 10 predictors with each chunk holding the responseVar.
base.mod <- lm(ozone_reading ~ 1 , data= inputData) # base intercept only model
all.mod <- lm(ozone_reading ~ . , data= inputData) # full model with all predictors
stepMod <- step(base.mod, scope = list(lower = base.mod, upper = all.mod), direction = "both", trace = 1, steps = 1000) # perform step-wise algorithm
shortlistedVars <- names(unlist(stepMod[[1]])) # get the shortlisted variable.
shortlistedVars <- shortlistedVars[!shortlistedVars %in% "(Intercept)"] # remove intercept
The output might includes levels within categorical variables, since ‘stepwise’ is a linear regression based technique, as seen in this case.
# Selected Variables # [1] "Temperature_Sandburg" "Month2" "Month3" "Month4" # [5] "Month5" "Month6" "Month7" "Month8" # [9] "Month9" "Month10" "Month11" "Month12" # [13] "Temperature_ElMonte" "Humidity" "Pressure_gradient" "Visibility" # [17] "Wind_speed" "pressure_height"
If you have a large number of predictor variables (100+), the above code may need to be placed in a loop that will run stepwise on sequential chunks of predictors. The shortlisted variables can be accumulated for further analysis towards the end of each iteration. This can be very effective method, if you want to (i) be highly selective about discarding valuable predictor variables. (ii) build multiple models on the response variable.
6. Boruta
The ‘Boruta’ method can be used to decide if a variable is important or not.
library(Boruta)
# Decide if a variable is important or not using Boruta
boruta_output <- Boruta(response ~ ., data=na.omit(inputData), doTrace=2) # perform Boruta search
# Confirmed 10 attributes: Humidity, Inversion_base_height, Inversion_temperature, Month, Pressure_gradient and 5 more. # Rejected 3 attributes: Day_of_month, Day_of_week, Wind_speed.
boruta_signif <- names(boruta_output$finalDecision[boruta_output$finalDecision %in% c("Confirmed", "Tentative")]) # collect Confirmed and Tentative variables
# Confirmed variables # [1] "Month" "ozone_reading" "pressure_height" "Humidity" # [5] "Temperature_Sandburg" "Temperature_ElMonte" "Inversion_base_height" "Pressure_gradient" # [9] "Inversion_temperature" "Visibility"
7. Information value and Weight of evidence
library(devtools)
install_github("riv","tomasgreif")
install_github("woe","tomasgreif")
library(woe)
library(riv)
iv_df <- iv.mult(german_data, y="gb", summary=TRUE, verbose=TRUE)
iv <- iv.mult(german_data, y="gb", summary=FALSE, verbose=TRUE)
# iv_df # Variable InformationValue Bins ZeroBins Strength # 1 ca_status 0.666011503 4 0 Very strong # 2 credit_history 0.293233547 5 0 Strong # 3 duration 0.259146834 5 0 Strong # 4 credit_amount 0.207970035 5 0 Strong # 5 savings 0.196009557 5 0 Average # 6 purpose 0.169195066 10 0 Average # 7 age 0.125210683 5 0 Average # 8 property 0.112638262 4 0 Average # 9 present_employment_since 0.086433631 5 0 Weak # 10 housing 0.083293434 3 0 Weak # 11 other_installment 0.057614542 3 0 Weak # 12 status_sex 0.044670678 5 1 Weak # 13 foreign_worker 0.043877412 2 0 Weak # 14 other_debtors 0.032019322 3 0 Weak # 15 installment_rate_income 0.023858552 2 0 Weak # 16 existing_credits 0.010083557 2 0 Wery weak # 17 job 0.008762766 4 0 Wery weak # 18 telephone 0.006377605 2 0 Wery weak # 19 liable_maintenance_people 0.000000000 1 0 Wery weak # 20 present_residence_since 0.000000000 1 0 Wery weak

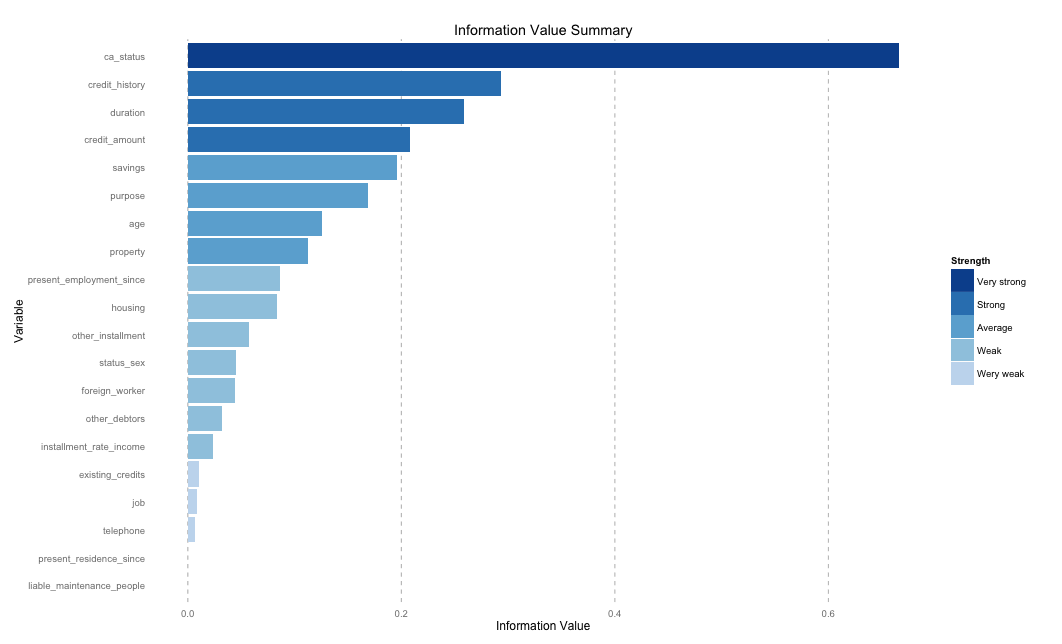

Plot the information value summary
# Plot information value summary
iv.plot.summary(iv_df)
Calculate weight of evidence variables
german_data_iv <- iv.replace.woe(german_data, iv, verbose=TRUE) # add woe variables to original data frame.
The newly created woe variables can alternatively be in place of the original factor variables.
